My Stereo Tube Guitar Power Amp


The Preamp circuit:

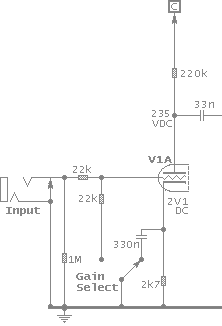

Preamp CircuitA fairly standard circuit, with a shelving treble boost located at 380 Hz for added mid and treble presence. I included a gain cut switch at the input to cut down the signal and input impedance for use with line-level devices. This switch also disables the treble boost, for a more "hi-fi" response appropriate for amplifying the processor I use, cleanly, with little coloration.

With a 12AX7 here, the gain and tone are not too far removed from the old 18W Marshall combo. With a 12AY7, the tone is nice and even for amping my processor. In either case, it cuts nicely through the wash of cymbals when the "Cut" control is turned up....

The voltages shown here are for a 12AX7.

The Phase-Inverter circuit:

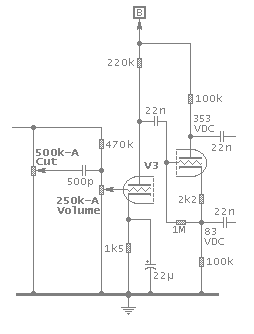

Phase Inverter CircuitA variation on the typical concertina phase inverter circuit.

I used a variation on Simcha Delft's "Moonlight" volume/tone circuit to allow for adjustment of treble response.  This circuit is a lot less interactive than the volume/tone pair in a tweed or brown Fender Deluxe, which makes it a lot less "fiddly" when adjusting the tone and/or volume to get the setting you're after.

The corner frequency was well chosen, and gives a nice bit of extra twang when turned up or a nice darker tone without getting too muddy when turned down.  With guitar straight in, and the preamp sensitivity switch set for guitar, the tone control has the ability to get into almost Voxy brightness, and when turned up, the amp snarls nicely.

The Output circuit:

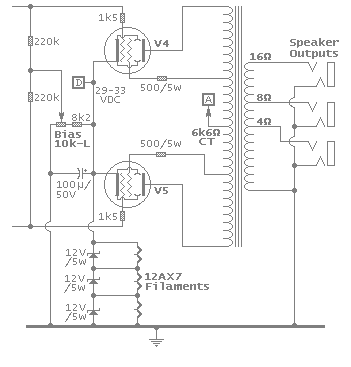

Power Amp CircuitAfter various online chats with Ken Gilbert on ampage and having heard so many good things about Dr. Z's Route 66 amp, I decided to use an "Ultra-Linear" layout, wherein the screens are hooked to taps in the output transformers' primary winding. The 7591A outputs live happily even though they're above the normal screen voltage limit, thanks to the UL circuit keeping the screens from being too far above the plate and burning up with excess current....

The biasing arrangement may look strange, but the preamp filaments make a fine cathode resistor (as long as they're bypassed!), and that way I get free DC filaments for my preamp! I put a string of Zener diodes to prevent the filaments from going much over their 12.6V rating. I bias the grids positive to achieve the correct bias, because the voltage developed across the three filaments is way more than is needed and would put the outputs nearly in Class-B. Once the bias is set to put the cathodes at 29-33VDC, it sounds great, and the side-effect of the Zeners limiting the cathode voltage rise is that the amp acts like a cathode-biased amp when clean, but tightens up like a Marshall Plexi when cranked!

Oh well, it sounds good to me, and that's what counts, right? }:^)>

The Power Supply circuit:

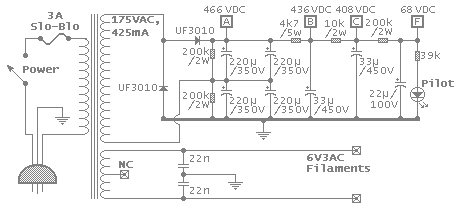

Power Supply CircuitThere's not much to say about the power supply - it's a fairly standard affair with the only unusual twist being the 175VAC high-voltage winding and the voltage-doubler circuit layout that it requires....

I did use an old trick I found in an old Knight KM15 hi-fi kit amp, though. I made the artificial centertap for the 6.3V filament line from a pair of 22nF caps instead of the usual 100 ohm resistors. This breaks the DC path between the filament string and the rest of the circuit, and helps reduce hum by balancing the filament string's AC voltage with respect to the chassis.
